Product introduction

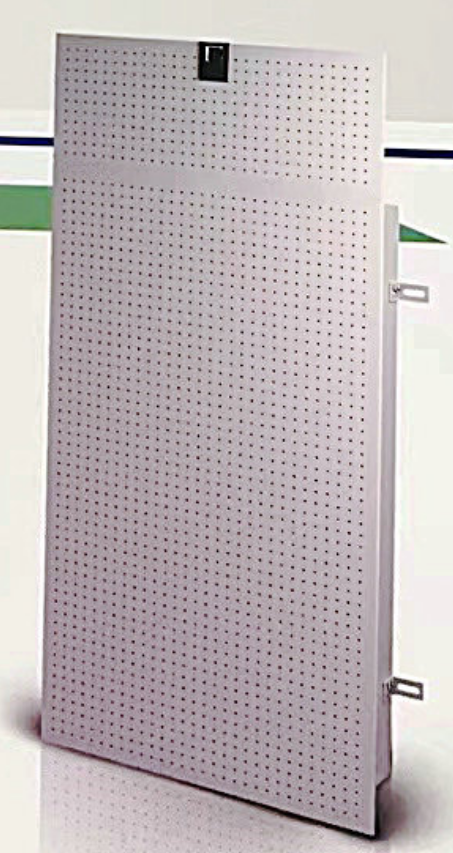

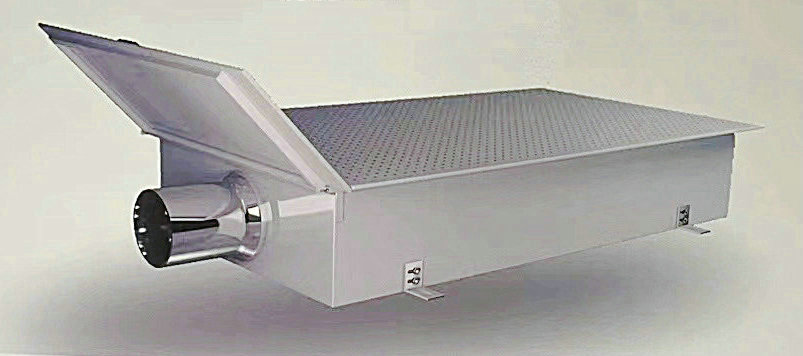

Diffusive intelligent air distribution system, the use of orifice plate air supply mode, the return air outlet is set in the bottom side of the room, so that the diffusion and mixing of the air supply jets are better, the mixing process of the jets is very short, the temperature difference and the wind speed attenuation is fast, and thus the working area is uniformly distributed in terms of temperature and speed. In accordance with the conditions of sending cold (hot) air, air temperature difference and the size of the air volume per unit area, the upper part of the working area is parallel flow, the lower part of the unstable flow, so that in the human body's main perceptual area of the airflow is more uniform. Refrigeration season, through the hole plate to send out the cold air and rising hot air for "heat exchange; heating season, send out the hot air through the bottom of the return air power downward flow.


The advantages are
1、more uniform distribution of air volume, the wind from the hole plate, quickly dispersed after the atomization, without a strong sense of airflow.
2、Lower noise of air supply, effectively eliminating the noise of pipeline transmission.
3、the perfect connection with the ceiling, to do with the ceiling flush, no protruding objects to improve the overall aesthetics of the room.


Five advantages
● Suitable for inverter air-conditioning
Variable frequency air conditioning has become the trend of future development of the marine industry, this device is especially suitable for variable frequency air conditioning air supply.
● Suitable for cabin
The larger the room, the better the air supply effect.
● Quiet level
Mistress-type air ducts, muffling effect is obvious, effectively removing the noise transmitted by the pipeline.
● Good human perception
Orifice plate downward air supply, to ensure uniformity of indoor airflow, improve air comfort human perception of the air supply environment is good.
● Aesthetics
The appearance of the air outlet hole plate is beautiful (perfect connection with the ceiling, to achieve flush with the ceiling), can be beautified effect processing.

Basic parameters
Air volume: 0~1200m3/h
Dampers opening adjustment: 15%~100
Power supply: 24VDC, 220VDC (for central control)
Air outlet size: PR80mm~PR200mm
Installation: Integral installation/unit installation
Fire protection standard: refer to DIN5510-22009
Hole wind speed: <369m/s box material:aluminum/steel profile section size:according to the system needs to be customized installation height:2m~2.8m
Temperature range: -10C~55CTested, when the air volume reaches 600m3/h, it can effectively reduce the noise by 11 dB(A) (breaking through the value of conventional air supply).
